Product Summary
The XC95144XL-7TQG100I is a 3.3V CPLD targeted for high-performance, low voltage applications in leading-edge communications and computing systems. It is comprised of eight 54V18 Function Blocks, providing 3,200 usable gates with propagation delays of 5 ns.
Parametrics
XC95144XL-7TQG100I absolute maximum ratings: (1)Supply voltage relative to GND, VCC: -0.5 to 4.0V; (2)Input voltage relative to GND, VIN: -0.5 to 5.5V; (3)Voltage applied to 3-state output, VTS: -0.5 to 5.5V; (4)Storage temperature (ambient), TSTG: -65 to +150℃; (5)Junction temperature, TJ: +150℃.
Features
XC95144XL-7TQG100I features: (1)5 ns pin-to-pin logic delays; (2)System frequency up to 178 MHz; (3)144 macrocells with 3,200 usable gates; (4)Available in small footprint packages; (5)Optimized for high-performance 3.3V systems; (6)Fast concurrent programming; (7)Slew rate control on individual outputs; (8)Enhanced data security features; (9)Excellent quality and reliability; (10)Pin-compatible with 5V-core XC95144 device in the 100-pin TQFP package.

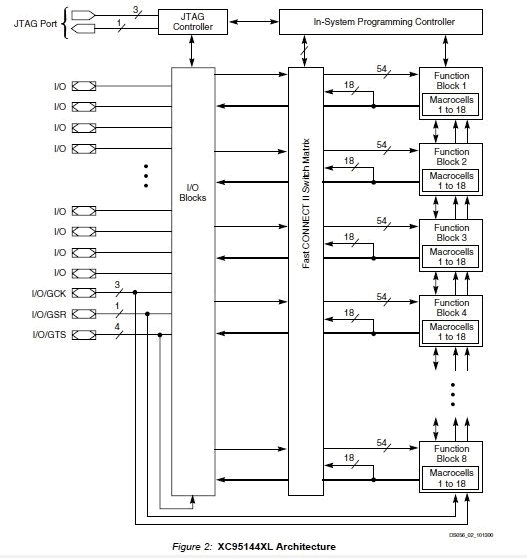

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC95144XL-7TQG100I |
|
IC CPLD 144MCELL 7.5NS 100-TQFP |
Data Sheet |
|
|
||||||||||||||||
