XC6SLX25T-3CSG324I

Product Summary

The XC6SLX25-3CSG324I is a member of Spartan-6 family.The XC6SLX25-3CSG324I provides leading system integration capabilities with the lowest total cost for high-volume applications. The XC6SLX25-3CSG324I delivers expanded densities ranging from 3,840 to 147,443 logic cells, with half the power consumption of previous Spartan families, and faster, more comprehensive connectivity. Built on a mature 45 nm low-power copper process technology that delivers the optimal balance of cost, power, and performance, The XC6SLX25-3CSG324I offers a new, more efficient, dual-register 6-input lookup table (LUT) logic and a rich selection of built-in system-level blocks. These include 18 Kb (2 x 9 Kb) block RAMs, second generation DSP48A1 slices, SDRAM memory controllers, enhanced mixed-mode clock management blocks, SelectIO technology, poweroptimized high-speed serial transceiver blocks, PCI Express compatible Endpoint blocks, advanced system-level power management modes, auto-detect configuration options, and enhanced IP security with AES and Device DNA protection.

Parametrics

XC6SLX25-3CSG324I absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.75 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VREF, Input reference voltage: –0.5 to 3.75 V; (5)TSTG, Storage temperature (ambient): –65 to 150℃; (6)TSOL, Maximum soldering temperature: +260℃; (7)Tj, Maximum junction temperature: +125℃.

Features

XC6SLX25-3CSG324I features: (1)Spartan-6 Family; (2)Designed for low cost; (3)Low static and dynamic power; (4)Multi-voltage, multi-standard SelectIO interface banks; (5)High-speed GTP serial transceivers in the LXT FPGAs; (6)Integrated Endpoint block for PCI Express designs (LXT); (7)Low-cost PCItechnology support compatible with the 33 MHz, 32- and 64-bit specification; (8)Efficient DSP48A1 slices; (9)Integrated Memory Controller blocks; (10)Abundant logic resources with increased logic capacity; (11)Block RAM with a wide range of granularity; (12)Clock Management Tile (CMT) for enhanced performance; (13)Simplified configuration, supports low-cost standards; (14)Enhanced security for design protection; (15)Faster embedded processing with enhanced, low cost, MicroBlaze soft processor; (16)Industry-leading IP and reference designs.

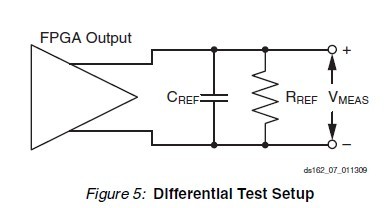

Diagrams
