XC4VFX20-10FF672I

Product Summary

The XC4VFX20-10FF672I is a member of Virtex-4 Family, which is the newest generation FPGA from Xilinx. The innovative Advanced Silicon Modular Block or ASMBL column-based architecture is unique in the programmable logic industry. The XC4VFX20-10FF672I contains three families (platforms): LX, FX, and SX. Choice and feature combinations are offered for all complex applications. A wide array of hard-IP core blocks complete the system solution. These cores include the PowerPC processors (with a new APU interface), Tri-Mode Ethernet MACs, 622 Mb/s to 11.1 Gb/s serial transceivers, voltage/temperature system monitor blocks, dedicated DSP slices, high-speed clock management circuitry, and source-synchronous interface blocks. The basic Virtex-4 building blocks are an enhancement of those found in the popular Virtex-based product families: Virtex, Virtex-E, Virtex-II, Virtex-II Pro, and Virtex-II Pro X, allowing upward compatibility of existing designs. Virtex-4 devices are produced on a state-of-the-art 90-nm copper process, using 300 mm (12 inch) wafer technology. Combining a wide variety of flexible features, the XC4VFX20-10FF672I enhances programmable logic design capabilities and is a powerful alternative to ASIC technology.

Parametrics

XC4VFX20-10FF672I absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF, Input reference voltage: –0.3 to 3.75 V; (6)IIN: Current applied to an I/O pin, powered or unpowered: ±100 mA; Total current applied to all I/O pins, powered or unpowered: ±200 mA; (7)AVCCAUXRX,Receive auxiliary supply voltage relative to analog ground, GNDA (RocketIO pins): –0.5 to 1.32 V; (8)AVCCAUXTX, Transmit auxiliary supply voltage relative to analog ground, GNDA (RocketIO pins): –0.5 to 1.32 V; (9)AVCCAUXMGT, Management auxiliary supply voltage relative to analog ground, GNDA (RocketIO pins): –0.5 to 3.0 V; (10)VTRX, Terminal receive supply voltage relative to GND: –0.5 to 3.0 V; (11)VTTX, Terminal transmit supply voltage relative to GND: –0.5 to 1.65 V; (12)TSTG, Storage temperature (ambient): –65 to 150℃; (13)TSOL, Maximum soldering temperature: +220℃; (14)TJ, Maximum junction temperature: +125℃.

Features

XC4VFX20-10FF672I features: (1)Three families LX/SX/FX; (2)Xesium Clock Technology; (3)XtremeDSP Slice; (4)Smart RAM Memory Hierarchy; (5)SelectIO Technology; (6)Flexible Logic Resources; (7)Built-in System Monitor (voltage/temp. measurement); (8)10-bit, 200kSPS A/D Converter (ADC); (9)Secure Chip AES Bitstream Encryption; (10)90-nm copper CMOS process; (11)1.2V core voltage; (12)Flip-Chip Packaging; (13)RocketIO 622 Mb/s to 11.1 Gb/s Multi-Gigabit; (14)Transceivers (MGT) (FX only); (15)IBM PowerPC RISC Processor Core (FX only): PowerPC 405 (PPC405) Core; Auxiliary Processor Unit Interface (User Coprocessor); (16)Multiple Tri-Mode Ethernet MACs (FX only).

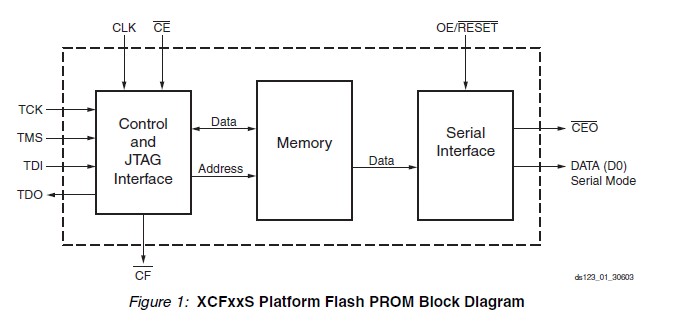

Diagrams
