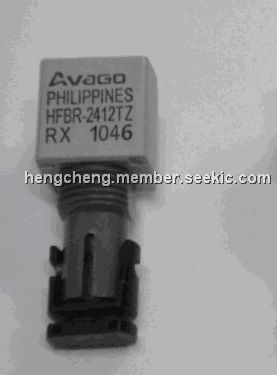

HFBR-2412TZ

Product Summary

The HFBR-2412TZ is a kind of Low Cost, Miniature Fiber Optic Component with ST, SMA, SC and FC Ports. The HFBR-2412TZ is designed to provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 2.7 kilometers. With the HFBR-2416TZ, the 125 MHz analog receiver, data rates of up to 160 megabaud are attainable. The HFBR-14x4Z high power transmitter and HFBR-24x6Z 125 MHz receiver pair up to provide a duplex solution optimized for 100 Base-SX. 100Base-SX is a Fast Ethernet Standard (100 Mbps) at 850 nm on multimode fiber. The typical applications of HFBR-2412TZ include: (1)100Base-SX Fast Ethernet on 850 nm; (2)Media/fiber conversion, switches, routers, hubs and NICs on 100Base-SX; (3)Local Area Networks; (4)Computer to Peripheral Links; (5)Computer Monitor Links; (6)Digital Cross Connect Links; (7)Central Office Switch/PBX Links; (8)Video Links; (9)Modems and Multiplexers; (10)Suitable for Tempest Systems; (11)Industrial Control Links.

Parametrics

HFBR-2412TZ absolute maximum ratings: (1)Storage Temperature, TS: -55 +85℃; (2)Operating Temperature, TA: 40 +85℃; (3)Lead Soldering Cycle: Temp: +260℃; Time: 10 sec; (4)Forward Input Current: Peak,IFPK: 200 mA; dc,IFdc: 100 mA; (5)Reverse Input Voltage, VBR: 1.8 V.

Features

HFBR-2412TZ features: (1)RoHS Compliant; (2)Meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards; (3)Meets TIA/EIA-785 100Base-SX standard; (4)Low Cost Transmitters and Receivers; (5)Choice of ST SMA, SC or FC Ports; (6)820 nm Wavelength Technology; (7)Signal Rates up to 160 MBd; (8)Link Distances up to 2.7 km; (9)Compatible with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS Fiber; (10)Repeatable ST Connections within 0.2 dB Typical; (11)Unique Optical Port Design for Efficient Coupling; (12)Auto-Insertable and Wave Solderable; (13)No Board Mounting Hardware Required; (14)Wide Operating Temperature Range -40 ℃ to +85 ℃; (15)AlGaAs Emitters 100% Burn-In Ensures High Reliability; (16)Conductive Port Option.

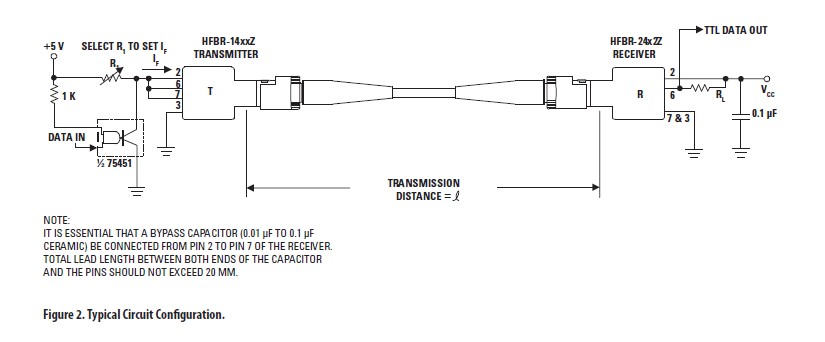

Diagrams
